TECHNOVIT 2000LC

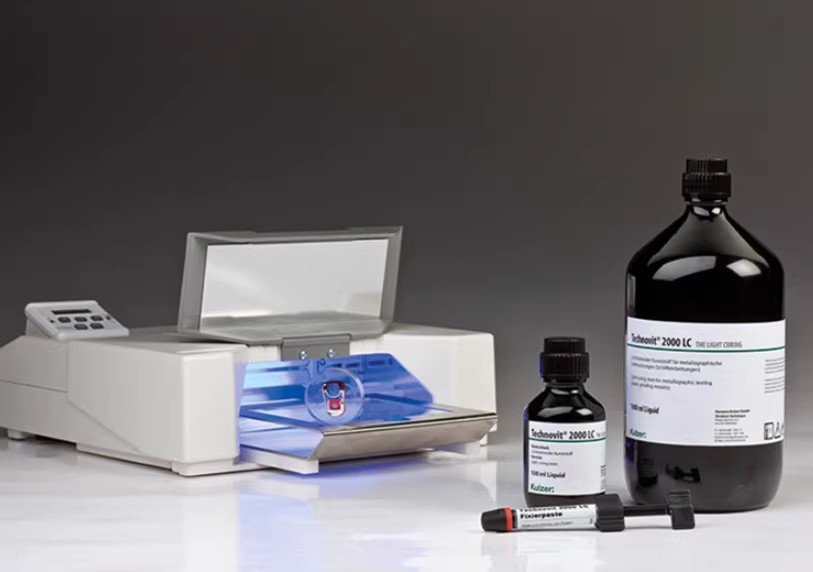

The product is used to prepare for precision, temperature-sensitive materials and micro-parts. The liquid is highly transparently embedded. The solidification (time: 2x10 minutes) is performed in a semi-transparent PE model in a Technotay POWER photo fixer, with a temperature of 90°C. Solidification can be further reduced (about 50°C) by many short periods of solidification or special irradiation procedures.

Technovit 2021 LC FAST solidified in less than five minutes, completes transparency and air-free bubble-smoked.

Product Advantages

✪(a) High mobility with high transparency and high levels of internal stress-sensitive material, with no internal response for the pore-drinking;

✪Full consumption - no mixing of residues;

✪(a) The time of photoconsolidation can be adjusted, as the solidification reaction is only by enabling;

✪- It works with blue light;

✪Low solidified temperature at about 90 °C;

✪The temperature of exposure can be about 50°C;

✪Alcohol and acid resistance;

✪(a) Be usable in mirrors (SEM);

✪(a) No bubble formation - highly transparent;

✪(a) Non-hazardous goods;

Technical Specifications

Technical specifications

	Technovit 2000 LC	Technovit 2021 LC FAST
Colours	High Transparency	Transparent
Purpose	No bubbles embedded	No bubbles embedded
Group	Liquid	Liquid
Smash Time [minutes]	No limit	No limit
Yes.22°C solidification time [minutes]	2 x 10	5
Peak temperature[℃]	20 g = 95	20 g = 116
Stink hardness[MPa]	78	79
Heat-resisting temperature[℃]	Highest80	Highest80
Solubility	Insoluble	Insoluble
Density[g/cm]	1.19	1.19
Linear contraction rate[%]	2.2	2.2
Volume contraction rate[%]	6.5	6.5
Refraction Rate Mono/Pomers	M = 1.4828 P = 1.5270	M = 1.4828 P = 1.5270
Storage temperature[℃]	25	25
Valid period[year]	3	3
Lin. TCE	65–95 [ppm]	65–95 [ppm]
Eflexing Mode[MPa] EN ISO 604: 2003	About 2000–3000	About 2400–2700

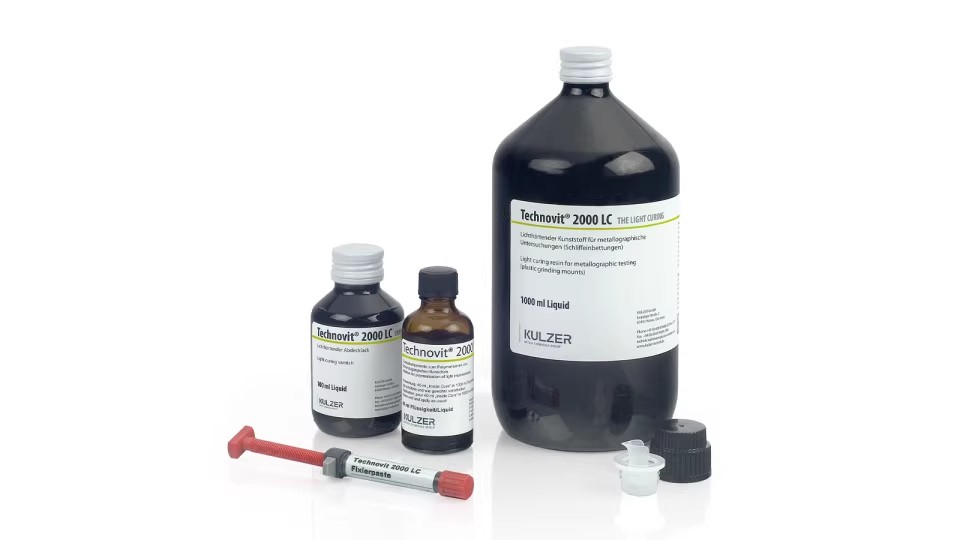

Packaging specifications

Technovit 2021 LC FASTLiquid	1000ml

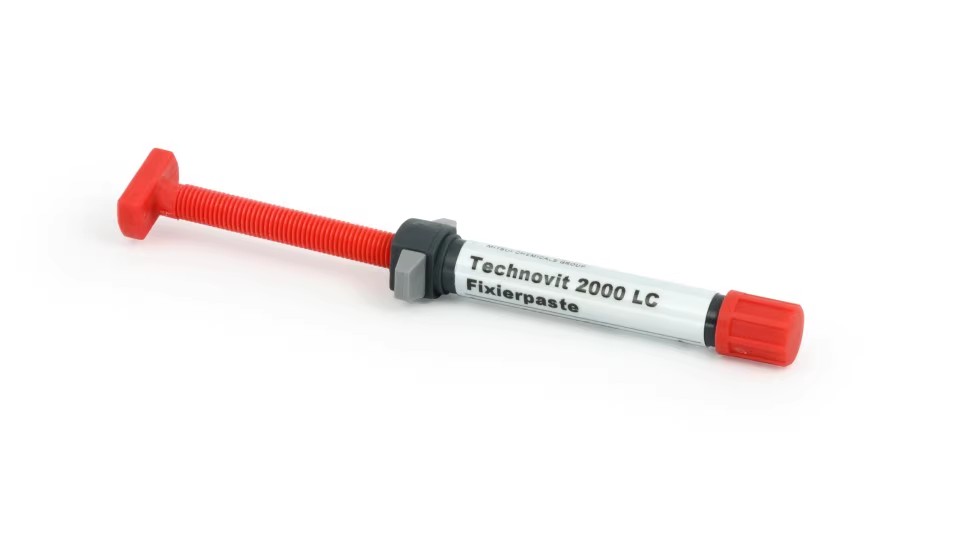

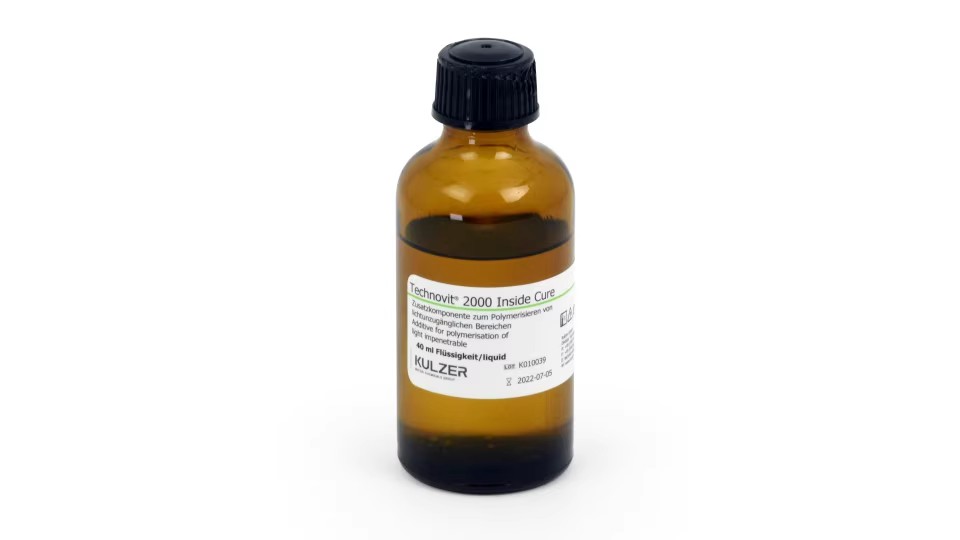

Technovit 2000 Hole-clause solidifier	40ml
Technovit 2000 LCSolid bit glue	4g
